Commercial

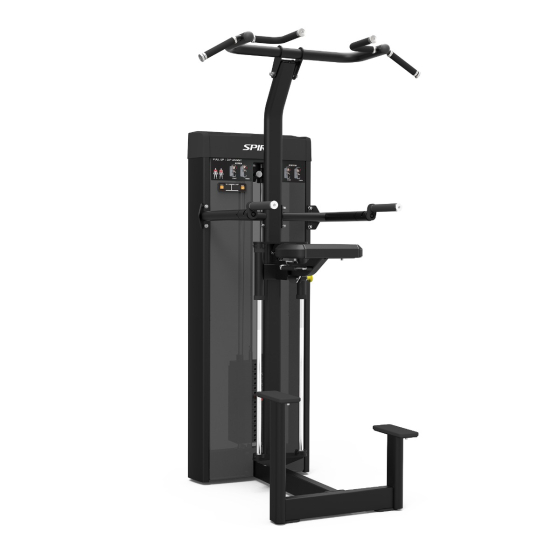

Pull Up/Dip Assist

CSD-PUDA

Dip handles rotate to fit different shoulder widths
Premium beveled pad with sport stitching
5 lb increment weight for more variety
Simple platform adjustment
Premium LOOS brand USA cables
230 lb weight stack, 1:1 ratio

Rep/Time Counter

5 lb Increment Weight

Durable Steel Frame

LOOS USA Cables

MULTI-FUNCTIONAL TRAINING VERSATILITY

One machine, double the function. The Pull Up and Dip Assist machine uses a weight stack to reduce the user’s own body weight for pull-up and dip exercises. The user platform positions users in a kneeling position for a greater sense of security. Dip handles rotate to fit different shoulder widths.

Integrated, digital rep counter ensures users know how fast or slow they are moving
Premium grips and beveled knee pad with sport stitching
230 lb graduated weight stack, 1:1 ratio

SPECIFICATIONS

PERFORMANCE

230 lb Weight Stack
5 lb Increment Weight
40 lb Top Plate (4 x 10 lb Plates)
1 x 10 lb Plate
12 x 15 lb Plates
Pulley Ratio: 1:1 Weight

FRAME

LOOS USA Cables
Heavy Gauge Steel Frame
Low Profile Design
High-Quality Electrostatic Powder Coat Finish
Fully Enclosed Weight Stack

CONVENIENCE

Rep/Time Counter (2 C Batteries required, not included)
Start/Finish Workout Diagrams
Pivoting Knee Pad
Multiple Grip Options
Storage Trays (Top of Weight Tower)

DIMENSIONS

Set-Up Dimension: 48.7" L x 46.7" W x 88" H
Assembled Unit Weight: 582.8 lb
Recommended User Height: 4’11” to 6’8”
Max Weight Capacity: 360 lb

WARRANTY

US COMMERCIAL WARRANTY

10 Years Frame
5 Years Bushings, Bearings, Shocks, Pulleys, Guide Rods
1 Year Paint and Finishes, Cables, Grips, Counter/Timer, Pull-Pin Components, Rail Wheels, Attachments, All Other Parts Not Mentioned
6 Months Upholstery
1 Year Labor

*Prisons and correctional facilities are excluded from warranty coverage.

Sales & Support

SALES SHEET A summary of product features, specs, and warranty details.

DUALS FAMILY
SALES SHEET Duals product features, specs, and warranty details.

STRENGTH CATALOG Explore the entire line of Spirit Strength equipment.

OWNER'S MANUAL Assembly, operation, and general maintenance.

C-SERIES WARRANTY GUIDE Compare warranty details of all C-Series products.

More Information
Badge	--Select--
Performance	230 lb Weight Stack 5 lb Increment Weight 40 lb Top Plate (4 x 10 lb Plates) 1 x 10 lb Plate 12 x 15 lb Plates Pulley Ratio: 1:1 Weight
Frame	LOOS USA Cables Heavy Gauge Steel Frame Low Profile Design High-Quality Electrostatic Powder Coat Finish Fully Enclosed Weight Stack
Convenience	Rep/Time Counter (2 C Batteries required, not included) Start/Finish Workout Diagrams Pivoting Knee Pad Multiple Grip Options Storage Trays (Top of Weight Tower)
Dimensions	Set-Up Dimension: 48.7" L x 46.7" W x 88" H Assembled Unit Weight: 582.8 lb Recommended User Height: 4’11” to 6’8” Max Weight Capacity: 360 lb
Warranty	US COMMERCIAL WARRANTY 10 Years Frame 5 Years Bushings, Bearings, Shocks, Pulleys, Guide Rods 1 Year Paint and Finishes, Cables, Grips, Counter/Timer, Pull-Pin Components, Rail Wheels, Attachments, All Other Parts Not Mentioned 6 Months Upholstery 1 Year Labor *Prisons and correctional facilities are excluded from warranty coverage.
